DIY Ultimate PVC Bow & Arrow

DIY – The ULTIMATE PVC Bow and Arrow!

These kids bows are really easy and surprisingly shoot really well! The arrows aren’t super heavy so they don’t fly straight like an arrow, but it serves the purpose. Lots of fun long hours put into these bows. I made about 20 of these for a family reunion, and the kids love them! I made them targets to shoot at, and the boys carried them around on their backs all day!

DIY (1)

Here are the supplies you need for 1 bow

  • 1/2 inch PVC pipe – 4 ft
  • 1 swimming noodle
  • 1 – 1/4 inch wooden dowel
  • 2 small nuts (that you screw on a bolt, not the kind you eat! :))
  • 1 nerf dart
  • string

Photo Aug 03, 11 42 40 AM

First take your PVC pipe that is 4 feet long and cut, either with a hand saw or a band saw, a slit on each end of the pipe. Make the slit about an inch long.

Photo Aug 03, 1 25 22 PM

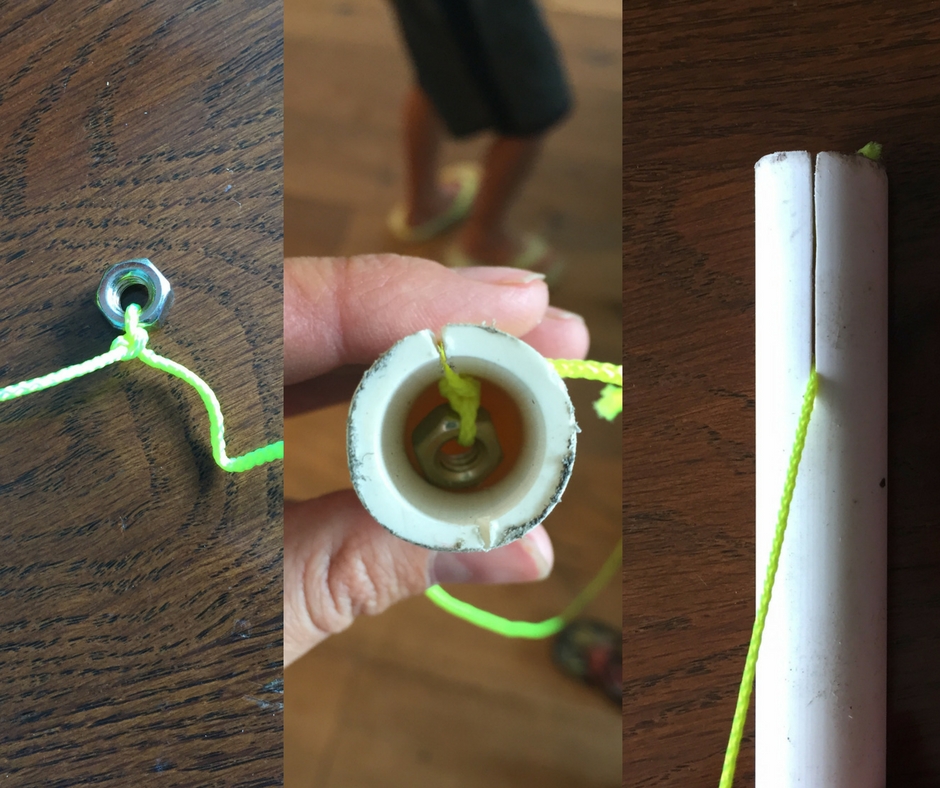

Cut your string the length of your PVC pipe and tie a small nut onto one end of the string. Place the nut and string in the PVC and pull the string down the one inch slit you made. The nut will hold it in place.

Untitled design (13)

Cut a 2 inch section from the pool noodle and slide it on the PVC pipe.

Now tie the other nut on the other end of the string about 5-6 inches from the end. You will be bending your pipe

Insert your nut and string into the PVC pipe. This part is a little tricky but is easy if you do it right. Get your other end of the string in one hand and the PVC pipe in the other. Step on the bottom of the PVC pipe with your foot and push down with your hand as well to bend the pipe. I bent mine pretty far and it never snapped. Once it is bent, slide the string and nut into the slit you made.

Untitled design (14)

Your bow should look like this now

Photo Aug 03, 2 55 49 PM

With a hot glue gun, glue the noodle in the middle to the PVC pipe

To make the arrow

Cut the 1/4 inch dowel down to 2 feet in length. Get your nerf dart, place a drop of hot glue down it and slide it on the dowel.

1 (1)

You are all done! You can decorate it with tape. On the 20 I made I did the same design on the bow and arrow so it matched! Then kids weren’t fighting over who’s arrow was who’s! Worked Great!

Photo Aug 03, 4 19 47 PM

Kids have a lot of fun and they last quite a long time! ENJOY AND HAVE FUN!!
